BLOWN FILM MACHINES

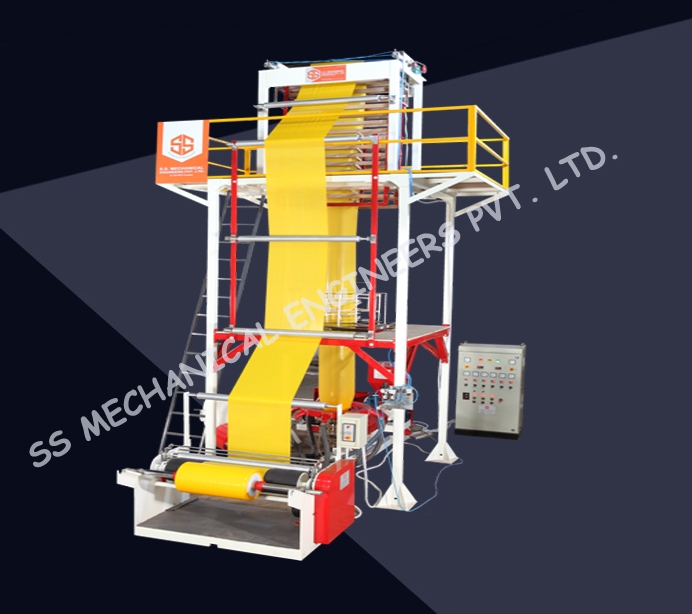

Monolayer Blown Film Machine (Compact Model)

Features

  • Film With High Strength & Resistance
  • Compact in Design
  • Low Power Consumption
  • Fast Return on Investment
  • Outstanding Output & Range
enquire now

Description:

We Offer a diverse range of customized monolayer high speed inflation machine - to suit a customer's specific requirement. Our most appreciated monolayer blown film machines are available with outputs ranging from 35 kg/hr to 85 kg/hr and lay-flat widths ranging from 50 mm to 1000 mm for processing polymers as LD, LLD, HM / HDPE. Our monolayer blown film machines are also available with special configurations to process wide width HDPE film, similarly these lines are also available with up to 4 color inline flexographic printing. Our monolayer blown film machines incorporate advanced features like-grooved feed barrel, barrier screw, dosing system, , manual as well as automatic screen changer, Rotating Die / platform , internal bubble cooling, automatic bubble cage, online thickness monitoring and control, 2 station surface and center winders , Auto tension control, Corona treaters etc. for longer life, higher productivity and better quality.

Applications:

    APPLICATIONS OF FILM
  • Garbage Bags
  • Carry Bags
  • Shopping Bags
  • Linears
  • T-Shirts Bags

Specifications:

Model SS HD/LD-350 SS HD/LD-400 SS HD/LD-450 SS HD/LD-550
Screw Size (MM) 35 40 45 55
Layflat Width (MM) 75 - 400 100 - 600 150 - 700 300 - 1000
Film Thickness (Micron) 10-110 10-110 20-200 20-200
Max. Extrusion Output (Kg/Hr) 30 40 60 85
Main Motor KW(HP) 5(7.5) 7.5(10) 11(15) 18.75(25)
Machine Dimension (Mtrs) (L x W xH) 2.3 x 1.7 x 3 2.6 x 2 x 3.5 3 x 2.1 x 3.8 3.5 x 2.5 x 4.6
