BLOWN FILM MACHINES

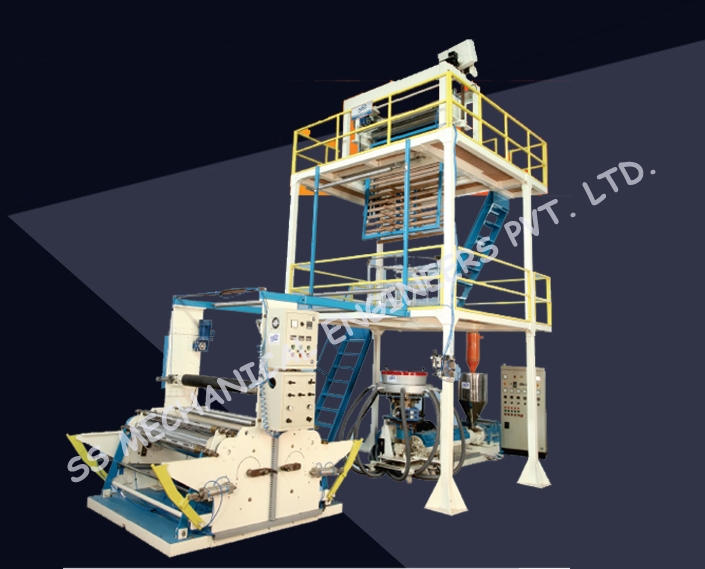

Monolayer Blown Film Machine (Standard Model)

Features

  • Film With High Strength & Resistance
  • Fast Return on Investment
  • Pneumatic Surface Roll Winder
  • Low Power consumpation
  • Outstanding Output
enquire now

Description:

We Offer a diverse range of customized Monolayer Blown Film Lines to suit a customer's specific requirement.

Our most appreciated Monolayer Blown Film Plant are available with outputs ranging from 35 kg/hr to 450 kg/hr and lay-flat widths ranging from 50 mm to 6000 mm for processing polymers as LD, LLD, HM / HDPE.

The Monolayer Blown Film Plant are also available with special configurations to process wide width HDPE film, similarly these lines are also available with up to 4 color inline flexographic printing.

Our Monolayer Blown Film Machine incorporate advanced features like-grooved feed barrel, barrier screw, dosing system, Liquid PIB dosing system, manual as well as automatic screen changer, Rotating Die / platform , internal bubble cooling, automatic bubble cage, online thickness monitoring and control, 2/4 station surface and center winders , Auto tension control, Corona treaters etc. for longer life, higher productivity and better quality.

Applications:

    APPLICATIONS OF FILM
  • Garbage Bags
  • Carry Bags
  • Shopping Bags
  • Linears
  • Construction Film
  • T-Shirts Bags
  • Aggriculture Film

Specifications:

Model SLL-550-H SLL-650-H SLL-750-H SLL-900-H
Screw Size (MM) 55 65 75 90
Layflat Width (MM) 300 - 1000 400 - 1200 500 - 1600 600 - 2000
Film Thickness (Micron) 20-200 20-300 20-300 20-400
Max. Extrusion Output (Kg/Hr) 90 120 180 260
Main Motor (KW) 22.50 30 45 75

Machine Dimension
(Mtrs) (L x W xH)

5.5 x 3 x 5

8 x 3.5 x 6

9 x 4 x 7

10 x 5 x 8

Click here to Watch the product overview video
