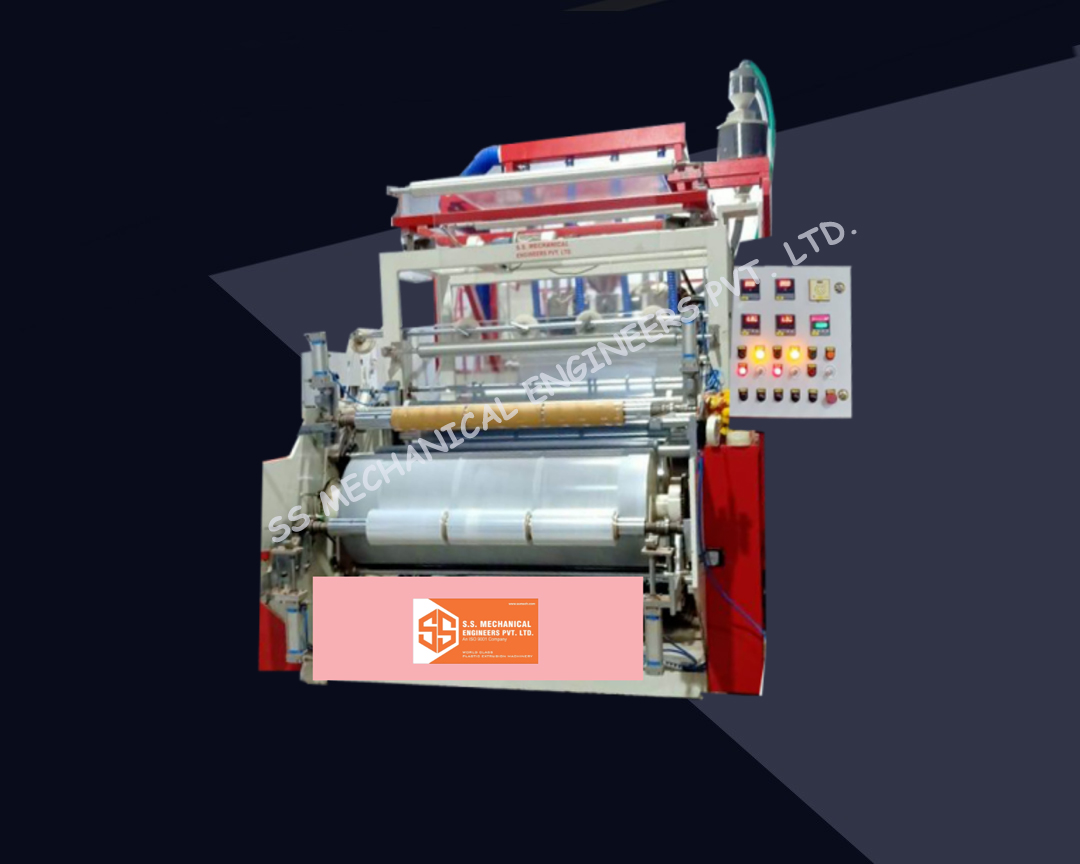

PE Stretch/ Cling Film Making Machine
Applications
- Stretch Film
- Cling Film
- Protection Film
- Biodegradable Film
- Pallet Wrap Film
Description:
With our on going innovation and R&D, we have manufactured this CAST PE STRETCH FILM LINE/ Extrusion Machine which can effectively produce/ extrude cast stretch films, cling film, pallet wrap film, protection film, biodegradable film for packaging food of very high quality very cost effectively.
Features:
- The Screw & Barrel made of Alloy Steel hardened with Plazma Nitriding
- Imported T-Die made of special Mould Steel by high Precise process & treatment to ensure the best result
- The Cast Chilled Roller Inside six way water circulation design and built-in spiral way to ensure roller surface temperature uniform
- Roll Winder can be Moved forward & backward with auto tension control & Auto Roll Cutting system with PLC Control
- In-Line Edge Trim Cutting & Re-feeding System
Specifications:
| Model | SS/SF-45/65-600 | SS/SF-55/75-1000 | SS/SF-65/90-1500 | ||
| Material | LLD/LD/PIB | LLD/LD/PIB | LLD/LD/PIB | ||
| Screw Size (MM) | 45/65 | 55/75 | 65/90 | ||
| Film Width (MM) | 600 (Finished) | 1000 (Finished) | 1500 (Finished) | ||
| T-Die Width (MM) | 850 | 1250 | 1750 | ||
| Max. Extrusion Output (Kg/Hr) | 60-90 | 120 | 100-170 | ||
| Winder | Surface Roll Winder with Auto Cutting & Reel Changeover System by PLC | ||||
| Machine Dimension (Mtrs) (L x W xH) | 10 x 4 x 5 | 12 x 4 x 5 | 13 x 4.5 x 5 | ||
